Disposable IBP Transducer Blood Pressure Transducer Abbott Ternary Type
Product Details:
| Place of Origin: | China |
| Brand Name: | Abbott (MX) |
| Certification: | CE ＆ ISO 13485 |
| Model Number: | BIY-MX-03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | depends on quantity & negotiation |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
|
Detail Information |
|||
| Properties: | Abbott Ternary Type Disposable IBP Transducer | Connector: | Abbott Connector |
|---|---|---|---|
| Highlight: | Abbott Ternary Type Blood Pressure Transducer,ISO 13485 Disposable IBP Transducer |
||
Product Description
There are several types of disposable IBP transducers available, each with its own unique features and capabilities. Some examples include:
1.Single-use IBP transducers
2.Dual-function IBP transducers
3.Micro-drip IBP transducers
4.Wireless IBP transducers
5.Ternary IBP transducers
1. Product Name

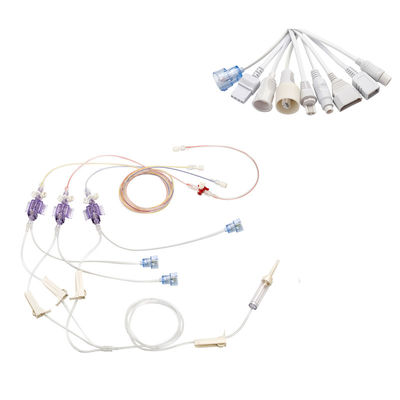

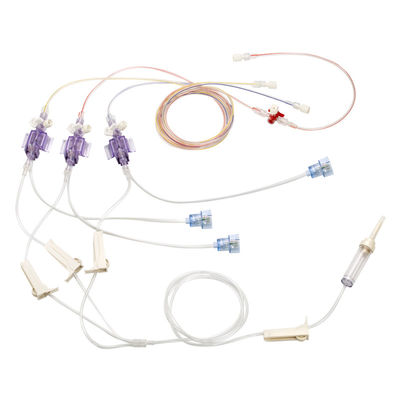

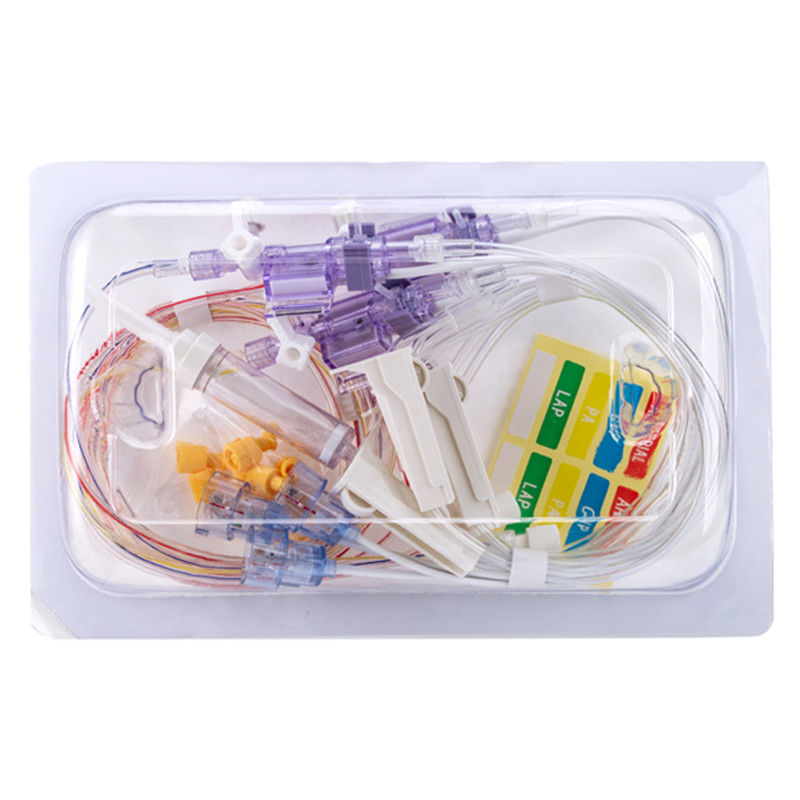

Abbott Ternary Type Disposable IBP Transducer Blood Pressure Transducer
2. Technical Parameters
|
Main technical parameters and working environment requirements: |
||||
|
Disposable Pressure Transducer |
||||
|
Barometric pressure |
70~106Kpa |
|||
|
Relative humidity |
10~90% (non-condensing) |
|||
|
Operating pressure range |
-50 ~ + 300 mmHg |
|||
|
Sensitivity |
5.0μV/V/mmHg ±3% |
|||
|
Nonlinearity and hysteresis |
full-scale reading±1.5% |
|||
|
Input impedance |
1200Ω ~3200Ω |
|||
|
Zero pressure offset |
-20mmHg~+20mmHg |
|||
|
Thermal offset shift |
≤±0.3mmHg/°C |
|||
|
Offset drift |
After warm-up for 20 seconds, drift within 2 mmHg within 8 hours |
|||
|
Thermal span shift |
≤±0.1%/°C |
|||
|
Frequency response |
Standard pressure set (48 "/ 12") is 40 Hz; Separate sensor > 200 Hz |
|||
|
Defibrillator withstand |
Defibrillation depends on the final connection of the equipment. |
|||
|
Leakage current |
Leakage current is dependent on the final connection of the equipment |
|||
|
Overpressure load |
-400~+4000mmHg |
|||
|
Shock resistance |
Withstand falling from one meter for three times |
|||
|
Light sensitivity |
When exposed to a 3400°K tungsten light, candle light at 3000 feet, it's less than 1 mmHg under rated voltage. |
|||
|
Storage and transport environment requirements |
- 20 ° C~ + 60 ° C, < 90%(non-condensing), no corrosive gas and indoor ventilation, and to avoid high temperature and cold. |
|||
|
Contact with the human body |
≤168h |
|||
|
Intra-system velocity |
||||
|
Flow |
2-5mL/h |
|||
|
Intra-system refers to the velocity under 6.00 VDC and 25°C, unless there are additional instructions. |
||||
3. Other Models :
|
Manufacturer |
OEM Part # |
|
Hospira |
42585-05 |
|
ICU Medical |
011-42584-05 |
|
REF |
Sensor Desription |
|
BIY-MX-01 |
Single Type Abbott MX Connector |
|
BIY-MX-02 |
Dual Type Abbott MX Connector |
|
BIY-MX-03 |
Ternary Type Abbott MX Connector |
4. Company Product :
Reusable SpO2 Sensor
Disposable SpO2 Sensor
SpO2 Adapter Cable
ECG Cable and Leadwires
EKG Cable and Leadwires
ECG Holter Cablel and Leadwires
ECG Trunck Cable 3/5/10 Lead
ECG Leadwires 3/5/10Lead
ECG Electrodes and ECG/EKG Accessories
Radiatranparent ECG Cable and Leadwires
Temperature Probe and Adapter Cable
IBP Cable and Adapter Cable and Disposable IBP Transducer
NIBP Cuff and NIBP Adapter Hose Tube...
5.Certificates
6. About Sample
1) if we have the product you need , we can send you the sample free
2) if we have not the product you need, we advice you send us one piece of sample,
We will check how to produce it for you .
