Utah Disposable IBP Transducer Blood Pressure Transducer UT Ternary Type
Product Details:
| Place of Origin: | China |
| Brand Name: | UTAH(UT) |
| Certification: | CE ＆ ISO 13485 |
| Model Number: | BIY-UT-03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | depends on quantity & negotiation |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
|
Detail Information |
|||
| Properties: | Utah UT Ternary Type Disposable IBP Transducer | Type: | Ternary |
|---|---|---|---|
| Highlight: | UT Ternary Type IBP Transducer,UT Ternary Blood Pressure Transducer |
||
Product Description
A ternary type disposable IBP transducer is a type of disposable IBP transducer
1. Product Name

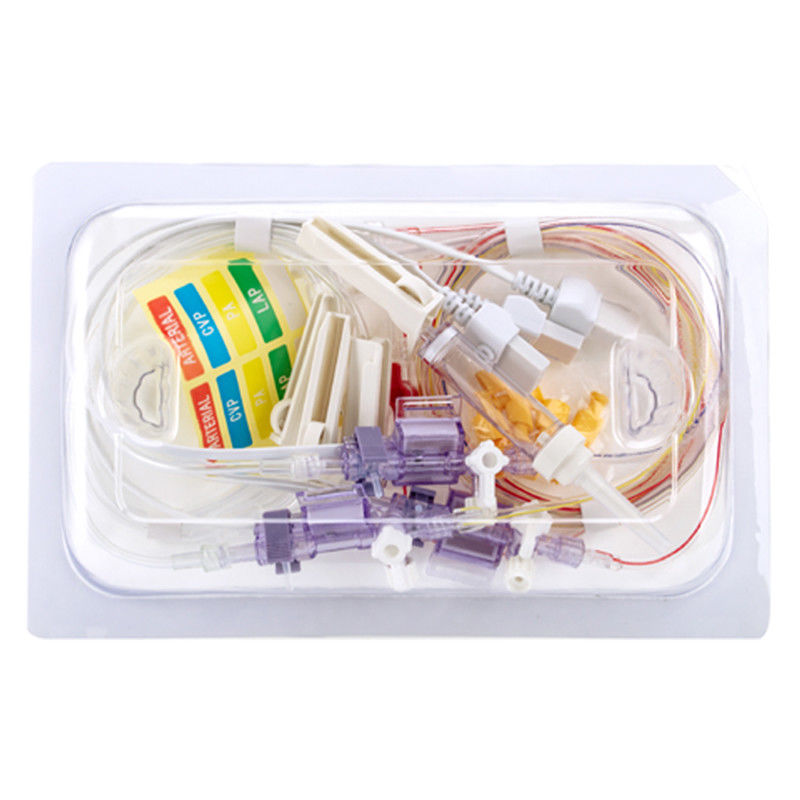

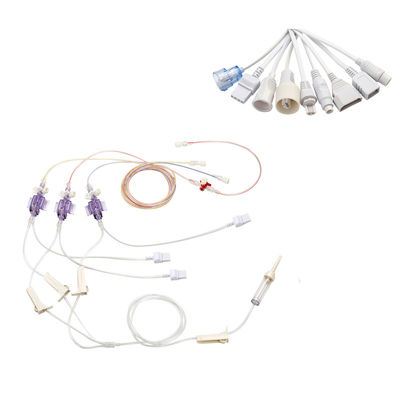

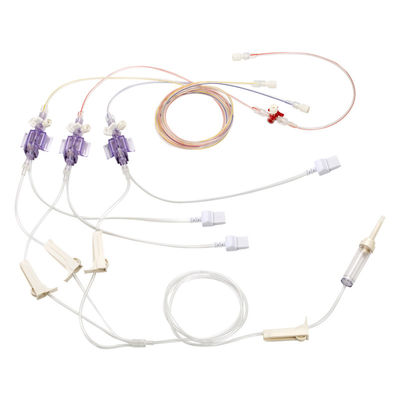

Utah UT Ternary Type Disposable IBP Transducer Blood Pressure Transducer
2. Technical Parameters
|
Main technical parameters and working environment requirements: |
||||
|
Disposable Pressure Transducer |
||||
|
Barometric pressure |
70~106Kpa |
|||
|
Relative humidity |
10~90% (non-condensing) |
|||
|
Operating pressure range |
-50 ~ + 300 mmHg |
|||
|
Sensitivity |
5.0μV/V/mmHg ±3% |
|||
|
Nonlinearity and hysteresis |
full-scale reading±1.5% |
|||
|
Input impedance |
1200Ω ~3200Ω |
|||
|
Zero pressure offset |
-20mmHg~+20mmHg |
|||
|
Thermal offset shift |
≤±0.3mmHg/°C |
|||
|
Offset drift |
After warm-up for 20 seconds, drift within 2 mmHg within 8 hours |
|||
|
Thermal span shift |
≤±0.1%/°C |
|||
|
Frequency response |
Standard pressure set (48 "/ 12") is 40 Hz; Separate sensor > 200 Hz |
|||
|
Defibrillator withstand |
Defibrillation depends on the final connection of the equipment. |
|||
|
Leakage current |
Leakage current is dependent on the final connection of the equipment |
|||
|
Overpressure load |
-400~+4000mmHg |
|||
|
Shock resistance |
Withstand falling from one meter for three times |
|||
|
Light sensitivity |
When exposed to a 3400°K tungsten light, candle light at 3000 feet, it's less than 1 mmHg under rated voltage. |
|||
|
Storage and transport environment requirements |
- 20 ° C~ + 60 ° C, < 90%(non-condensing), no corrosive gas and indoor ventilation, and to avoid high temperature and cold. |
|||
|
Contact with the human body |
≤168h |
|||
|
Intra-system velocity |
||||
|
Flow |
2-5mL/h |
|||
|
Intra-system refers to the velocity under 6.00 VDC and 25°C, unless there are additional instructions. |
||||
3. Other Models :
|
Manufacturer |
OEM Part # |
|
DRE |
P01733 |
|
REF |
Sensor Desription |
|
BIY-UT-01 |
Single Type UTAH UT Connector |
|
BIY-UT-02 |
Dual Type Utah UT Connector |
|
BIY-UT-03 |
Ternary Type Utah UT Connector |
