PVB PB Ternary Type Disposable IBP Transducer Blood Pressure Transducer for IBP Adapter Cable

PVB PB Ternary Type Disposable IBP Transducer Blood Pressure Transducer for IBP Adapter Cable

Product Details:

Place of Origin: China
Brand Name: PVB (PB)
Certification: CE & ISO 13485
Model Number: BIY-PB-03

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: depends on quantity & negotiation
Payment Terms: Western Union, MoneyGram, L/C, T/T
Get Best Price Contact Now

Detail Information

Properties: Medical Materials & Accessories Type: Surgical Supplies
Connector: PVB Connector Patient Size: Adult/Pediatric/Neonate
Key Words: Patient Monitor Cable, Invasive Blood Pressure Cable Application: Patient Monitor

Product Description

1. Product Name

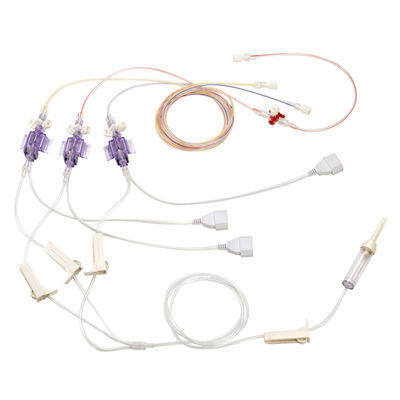

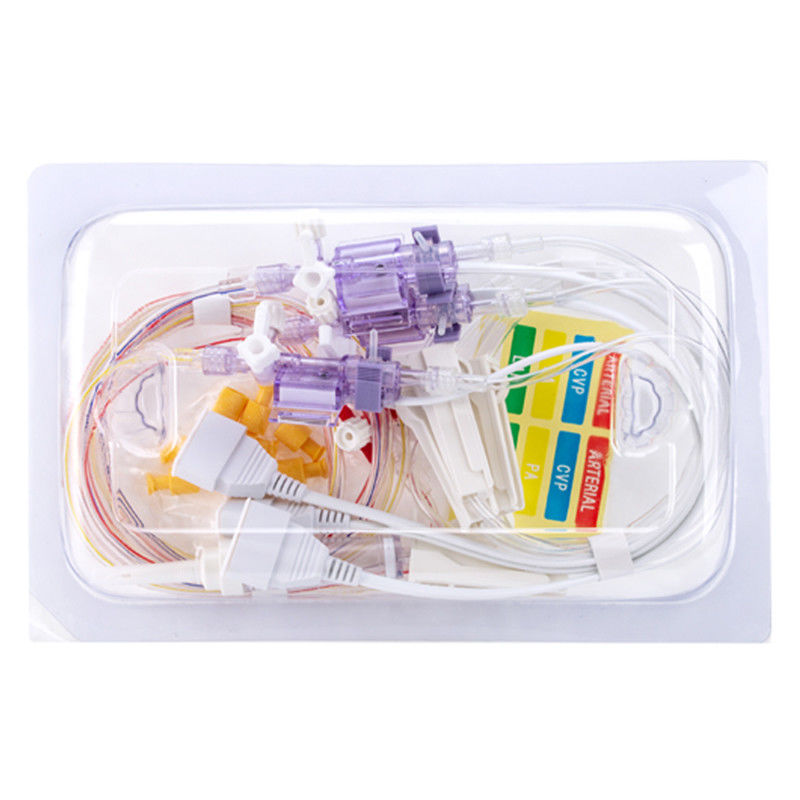

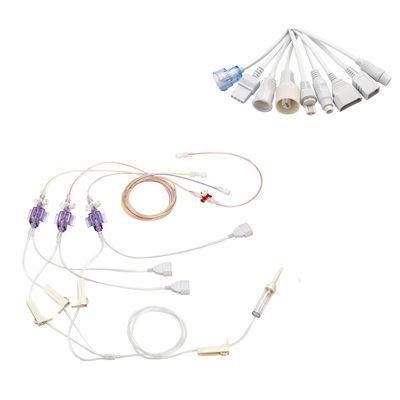

PVB PB Ternary Type Disposable IBP Transducer Blood Pressure Transducer for IBP Adapter Cable





2.Description Of Disposable IBP Transducer

- Consistent and accurate readings during monitoring

- Easy to use.

- With a variety of interface cables available, it can be connected to most types of monitors.

- Fully integrated flow-thru component design simplifies filling and dibbling.

- Versatile dual function snap-tab allows dynamic response testing.

- Ternary channel kit.

- With PVB connector





3. Technical Parameters

Main technical parameters and working environment requirements:

Disposable Pressure Transducer

Barometric pressure

70~106Kpa

Relative humidity

10~90% (non-condensing)

Operating pressure range

-50 ~ + 300 mmHg

Sensitivity

5.0μV/V/mmHg ±3%

Nonlinearity and hysteresis

full-scale reading±1.5%

Input impedance

1200Ω ~3200Ω

Zero pressure offset

-20mmHg~+20mmHg

Thermal offset shift

≤±0.3mmHg/°C

Offset drift

After warm-up for 20 seconds, drift within 2 mmHg within 8 hours

Thermal span shift

≤±0.1%/°C

Frequency response

Standard pressure set (48 "/ 12") is 40 Hz; Separate sensor > 200 Hz

Defibrillator withstand

Defibrillation depends on the final connection of the equipment.

Leakage current

Leakage current is dependent on the final connection of the equipment

Overpressure load

-400~+4000mmHg

Shock resistance

Withstand falling from one meter for three times



Light sensitivity

When exposed to a 3400°K tungsten light, candle light at 3000 feet, it's less than 1 mmHg under rated voltage.

Storage and transport environment requirements

- 20 ° C~ + 60 ° C, < 90%(non-condensing), no corrosive gas and indoor ventilation, and to avoid high temperature and cold.

Contact with the human body

≤168h

Intra-system velocity

Flow

2-5mL/h

Intra-system refers to the velocity under 6.00 VDC and 25°C, unless there are additional instructions.





4. Other Models :



REF

Sensor Desription

BIY-PB-01

Single Type PVB(PB) Connector

BIY-PB-02

Dual Type PVB(PB) Connector

BIY-PB-03

Ternary Type PVB(PB) Connector





5. Company Product :



Reusable SpO2 Sensor

Disposable SpO2 Sensor

SpO2 Adapter Cable

ECG Cable and Leadwires

EKG Cable and Leadwires

ECG Holter Cablel and Leadwires

ECG Trunck Cable 3/5/10 Lead

ECG Leadwires 3/5/10Lead

ECG Electrodes and ECG/EKG Accessories

Radiatranparent ECG Cable and Leadwires

Temperature Probe and Adapter Cable

IBP Cable and Adapter Cable and Disposable IBP Transducer

NIBP Cuff and NIBP Adapter Hose Tube

EEG Electrodes Leadwires

Spare parts and semi-sinished cables

PVB PB Ternary Type Disposable IBP Transducer Blood Pressure Transducer for IBP Adapter Cable 0





6. Certificates



PVB PB Ternary Type Disposable IBP Transducer Blood Pressure Transducer for IBP Adapter Cable 1





7. Delivery details:


1) Our production cycle:
Item will be shipped within 4-7 working days after we get your Payment, We are always serious on the delivery time, all orders will be checked by us carefully to make sure there is no delay on the shipment.

2) Shipping Methods:
a).we usually send goods by DHL,Fedex,TNT,UPS, Tracking number will be advised after delivery, all of express lead time is about 5-7 working days.
b). If order is big, we will suggest you use Air Freight or Sea freight.




8. About Sample


1) if we have the product you need , we can send you the sample free
2) if we have not the product you need, we advice you send us one piece of sample,
We will check how to produce it for you .





9. FAQ



Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.


Q: What is your terms of payment and way of payment?
A: 100% payment in advance. Payment by TT/Western Union/Paypal/Alibaba/Ali pay/Wechat /L/C(some countries )are acceptable.


Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, make payment,Contact the courier to deliver goods .



Q:Can your provide customize or OEM service?

A: 1. We can add customer's logo on the product or package if samples or design is provided.

2. We can provide design service or manufacture if sample or design is provided.



Q: Can we become your distributor in local?

A: Yes ,We are looking for distributors in every country or region .If you are interested in distribution ,you can email us freely.





Want to Know more details about this product
I am interested in PVB PB Ternary Type Disposable IBP Transducer Blood Pressure Transducer for IBP Adapter Cable could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
