Digital Tech Pediatric SpO2 Disposable Sensor White Foam For ECG1200G PM50 PM60D
Product Details:
| Place of Origin: | China |
| Brand Name: | BESTMED& OEM |
| Certification: | ISO13485& DOC |
| Model Number: | BSAY12-17 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25pcs |
|---|---|
| Price: | depends on quantity & negotiation |
| Packaging Details: | 1pcs per bag then 50pcs into a big PE bag or pack according to customers requirement |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 50000 pcs per Month |
|
Detail Information |
|||
| Properties: | Medical Accessories | Type: | Surgical Supplies |
|---|---|---|---|
| Instrument Classification: | Class II | Color: | White |

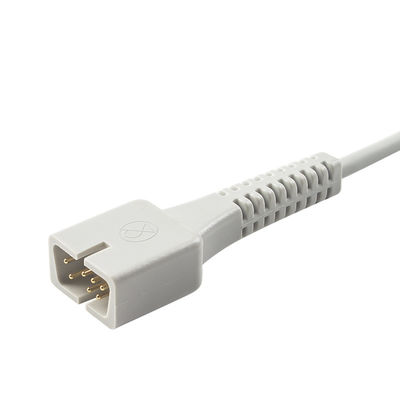

| Connector: | DB9 7Pin | Product Name: | Contec Creative Digital Tech 7pin Pediatric White Foam Disposable Spo2 Sensor |
| Packing: | 1pcs Per Bag | Patient: | Adult / Neonate / Pediatric / Infant |
| Material: | White Foam | Length: | 85CM |
| High Light: | Digital Tech Pediatric SpO2 Disposable Sensor,PM50 Disposable SpO2 Sensor,Medical Disposable SpO2 Sensor |
||
Product Description
1.Product Name
Contec Creative Digital Tech Pediatric white foam Disposable SpO2 Sensor for ECG1200G PM50 PM60D
2. Instructions Of Disposable Spo2 Sensor
Before using, make sure you understand all the precautions listed.
Before use, check the sensor for dirt or rust. If so, this should be done after cleaning or wiping. If necessary, replace the oxygen probe. The finger being tested should be kept clean.
1. The best site for testing is the index finger. If the location on the index finger is inappropriate or unusable, another finger may be used as the test site;
2. Place the index finger on the measurement port of the oximetry probe. on the tip of the finger. Ensure that the red light from the LED passes through the patient's tissue;
3. secure the cable with tape in the direction of the back of the hand to prevent the probe from falling off;
4. Connect the oximeter and the extension cable to the device according to the device's instruction manual. Check that the oximeter is working properly according to the prompt message.
3. Technical Parameters
|
Accuracy |
SpO2 |
Range (80%-100%) |
Accuracy ±2% |
|
|
|
Range (70%-89%) |
Accuracy ±3% |
|
|
|
Range ( < 69%) |
no specified |
|
|
Pulse Rate |
20-250 bpm |
Accuracy ± 3digits |
4. OEM Part Number Cross References:
|
Manufacturer |
OEM Part # |
|
Contec |
ESA0004 |
| Creative | 15040021 |
5. Compatibility:
|
Manufacturer |
Model |
|
Contec |
CMS 6000, CMS 6500, CMS 6800, CMS 7000, CMS 8000, CMS 9000, CMS5000, CMS5000C, CMS60, CMS60C, CMS60CW, CMS60D, CMS60DW, ECG1200G, PM50, PM60D |
|
Creative |
PC-66B ,PC-3000 ,UP7000 (Digital tech) |
|
Hillmed |
Monitors with Digital Technology |
|
Medica D |
Vitacare |
|
Promed |
PM7000 |
|
Risingmed |
CMS60C, RPM 9000C |
|
Sinohero |
S80 |
|
Sonolife |
SmartWave 12 |
|
Venni |
VI-1060P, VI-1220P, VI-60D |
|
Heal Force |
Classic 120, Prince 100F |
|
Newtech |
PM90, PM9000A |
6. Other Models :
|
REF |
Sensor Desription |
|
BSAY01-17 |
DB9 7Pin Adult Non-woven Fabric |
|
BSAY02-17 |
DB9 7Pin Peidatric Non-woven Fabric |
|
BSAY03-17 |
DB9 7Pin Infant Non-woven Fabric |
|
BSAY04-17 |

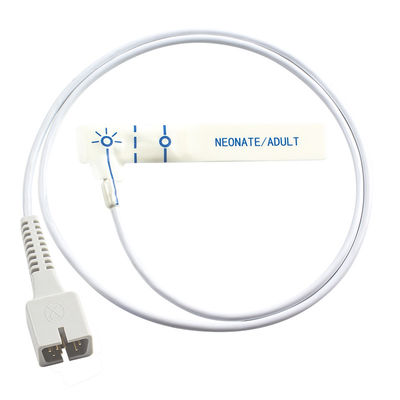

DB9 7Pin Adult/Neoante Non-woven Fabric |
|
BSAY05-17 |
DB9 7Pin Adult Skin Stretch Fabric |
|
BSAY06-17 |
DB9 7Pin Peidatric Skin Stretch Fabric |
|
BSAY07-17 |
DB9 7Pin Infant Skin Stretch Fabric |
|
BSAY08-17 |
DB9 7Pin Adult/Neonate Skin Stretch Fabric |
|
BSAY09-17 |
DB9 7Pin Adult/Neoante Blue Spong |
|
BSAY10-17 |
DB9 7Pin Pediataric/Infant Blue Spong |
|
BSAY11-17 |

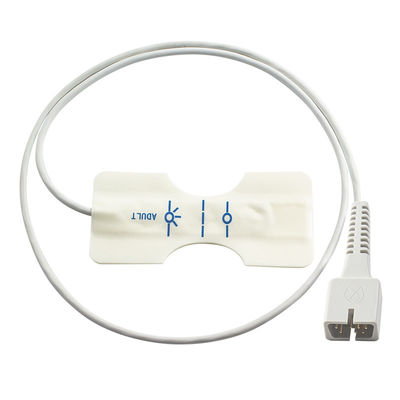

DB9 7Pin Adult Skin White Foam |
|
BSAY12-17 |

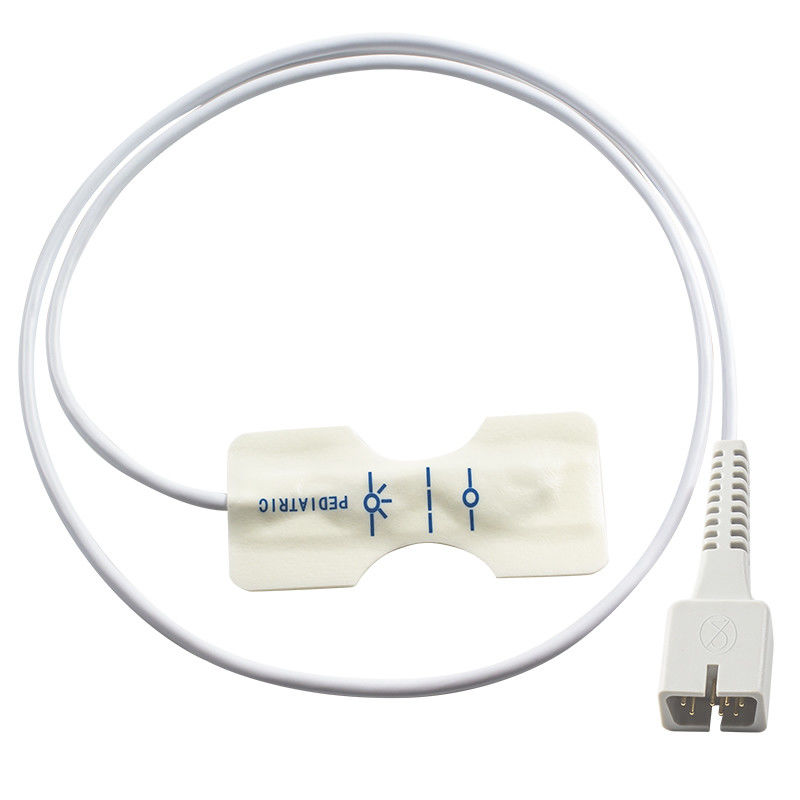

DB9 7Pin Pediatric Skin White Foam |
|
BSAY13-17 |

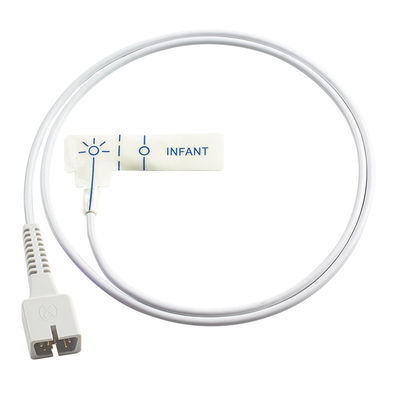

DB9 7Pin Infant Skin White Foam |
|
BSAY14-17 |
DB9 7Pin Adult/Neonate White Foam |
7. Company Product :
Reusable SpO2 Sensor
Disposable SpO2 Sensor
SpO2 Adapter Cable
ECG Cable and Leadwires
EKG Cable and Leadwires
ECG Holter Cablel and Leadwires
ECG Trunck Cable 3/5/10 Lead
ECG Leadwires 3/5/10Lead
ECG Electrodes and ECG/EKG Accessories
Radiatranparent ECG Cable and Leadwires
Temperature Probe and Adapter Cable
IBP Cable and Adapter Cable and Disposable IBP Transducer
NIBP Cuff and NIBP Adapter Hose Tube
EEG Electrodes Leadwires
Spare parts and semi-sinished cables
8. Certificates
9. FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.
Q: How long is your delivery time?
A: Stock order :1-2 days
Normal order 2-4 days
Batch order depends on production & order quantity and negotiation.
Q: What is your terms of payment and way of payment?
A: 100% payment in advance. Payment by TT/Western Union/Paypal/Alibaba/Ali pay/Wechat /L/C(some countries )are acceptable.
Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, make payment,Contact the courier to deliver goods .
Q: What is way of shippment?
A: 1. We ship goods by DHL/Fedex/UPS/EMS/TNT/Shunfeng Express
2. We can give goods to our customers' courier agent and freight from factory to shenzhen agent is free.
Q: Can your provide customize or OEM service?
A:1. We can add customer's logo on the product or package if samples or design is provided.
2. We can provide design service or manufacture if sample or design is provided.
Q: Can we become your distributor in local?
A: Yes ,We are looking for distributors in every country or region .If you are interested in distribution ,you can email us freely.
