Non Woven Fabric Disposable SpO2 Sensor Digital Tech For PC-66B PC-3000 UP7000

Non Woven Fabric Disposable SpO2 Sensor Digital Tech For PC-66B PC-3000 UP7000

Product Details:

Place of Origin: China
Brand Name: BESTMED& OEM
Certification: ISO13485& DOC
Model Number: BSAY01-17

Payment & Shipping Terms:

Minimum Order Quantity: 25pcs
Price: depends on quantity & negotiation
Packaging Details: 1pcs per bag then 50pcs into a big PE bag or pack according to customers requirement
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 50000 pcs per Month
Get Best Price Contact Now

Detail Information

Properties: Medical Accessories Type: Surgical Supplies
Instrument Classification: Class II Color: White

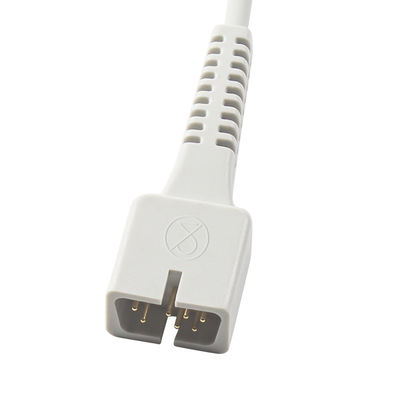

Connector: DB9 7Pin Product Name: Contec Creative Digital Tech 7pin Disposable Spo2 Sensor
Packing: 1pcs Per Bag Patient: Adult / Neonate / Pediatric / Infant
Material: Non Woven Fabric Length: 85CM
High Light:

UP7000 Disposable SpO2 Sensor

,

Digital Tech SpO2 Disposable Sensor

,

PC-66B Disposable SpO2 Sensor

Product Description

1. Product Name



Contec Creative Digital Tech Non woven Fabric Disposable SpO2 Sensor for PC-66B PC-3000 UP7000



2. Instructions Of Disposable Spo2 Sensor



1. Hold the spo2 sensor with its opening toward the patient's index finger, toe, palm, or sole of the foot. The side with the finger or toe mark is placed on top, as detailed below:
2. Place the patient's measurement site into the spo2 sensor until the tip rests against the end of the sensor.
3. Adjust the measurement site so that it rests evenly on the middle base of the spo2 sensor.
4. Guide the cable along the top of the patient's hand or foot.
5. Insert the sensor into the appropriate oximeter and verify operation as described in the oximeter operation manual.
6. Check the skin at the sensor site for integrity every 2 hours.





3. Technical Parameters



Accuracy

SpO2

Range (80%-100%)

Accuracy ±2%





Range (70%-89%)

Accuracy ±3%





Range ( < 69%)

no specified



Pulse Rate

20-250 bpm

Accuracy ± 3digits







4. OEM Part Number Cross References:

Manufacturer

OEM Part #

Contec

ESA0004

Creative 15040021





5. Compatibility:

Manufacturer

Model

Contec

CMS 6000, CMS 6500, CMS 6800, CMS 7000, CMS 8000, CMS 9000, CMS5000, CMS5000C, CMS60, CMS60C, CMS60CW, CMS60D, CMS60DW, ECG1200G, PM50, PM60D

Creative

PC-66B ,PC-3000 ,UP7000 (Digital tech)

Hillmed

Monitors with Digital Technology

Medica D

Vitacare

Promed

PM7000

Risingmed

CMS60C, RPM 9000C

Sinohero

S80

Sonolife

SmartWave 12

Venni

VI-1060P, VI-1220P, VI-60D

Heal Force

Classic 120, Prince 100F

Newtech

PM90, PM9000A





6. Other Models :



REF

Sensor Desription

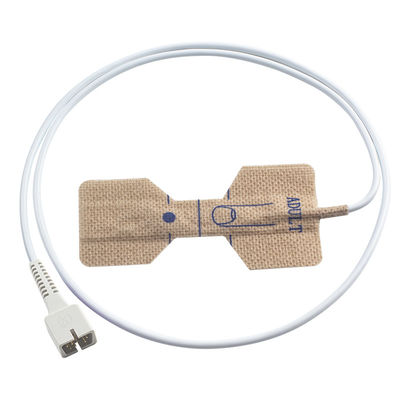

BSAY01-17

DB9 7Pin Adult Non-woven Fabric

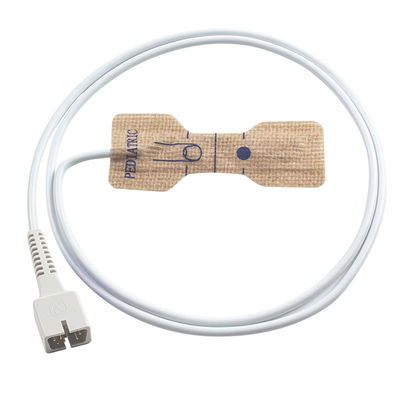

BSAY02-17

DB9 7Pin Peidatric Non-woven Fabric

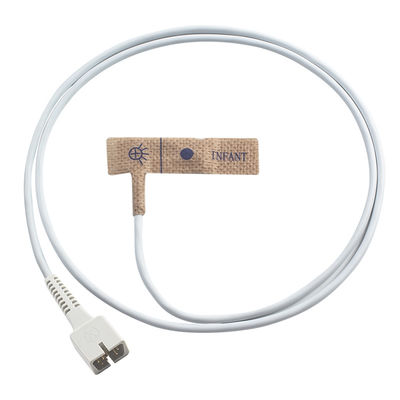

BSAY03-17

DB9 7Pin Infant Non-woven Fabric

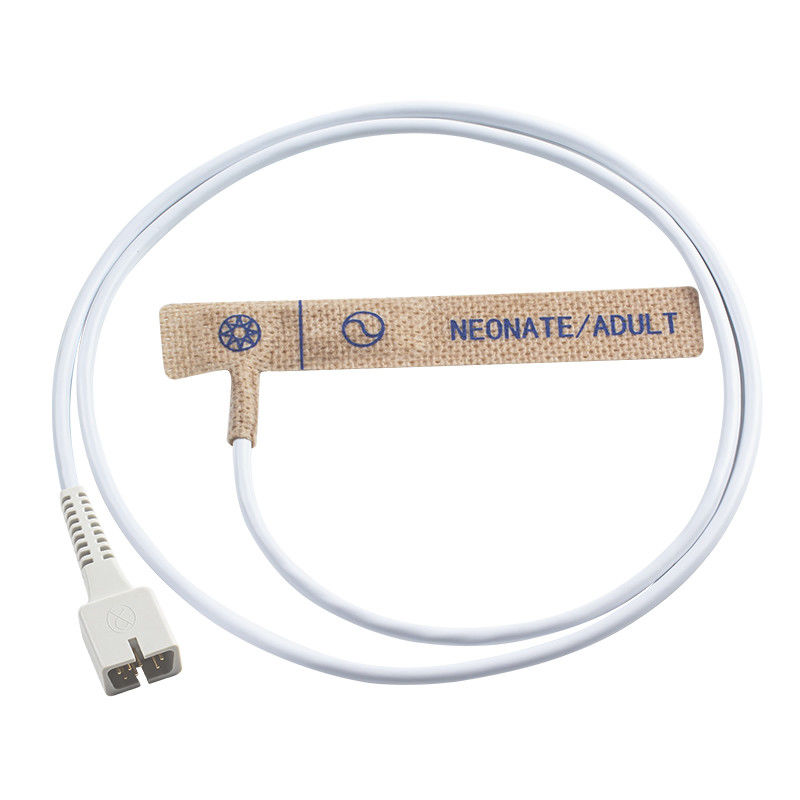

BSAY04-17

DB9 7Pin Adult/Neoante Non-woven Fabric

BSAY05-17

DB9 7Pin Adult Skin Stretch Fabric

BSAY06-17

DB9 7Pin Peidatric Skin Stretch Fabric

BSAY07-17

DB9 7Pin Infant Skin Stretch Fabric

BSAY08-17

DB9 7Pin Adult/Neonate Skin Stretch Fabric

BSAY09-17

DB9 7Pin Adult/Neoante Blue Spong

BSAY10-17

DB9 7Pin Pediataric/Infant Blue Spong

BSAY11-17

DB9 7Pin Adult Skin White Foam

BSAY12-17

DB9 7Pin Pediatric Skin White Foam

BSAY13-17

DB9 7Pin Infant Skin White Foam

BSAY14-17

DB9 7Pin Adult/Neonate White Foam





7. Company Product :



Reusable SpO2 Sensor

Disposable SpO2 Sensor

SpO2 Adapter Cable

ECG Cable and Leadwires

EKG Cable and Leadwires

ECG Holter Cablel and Leadwires

ECG Trunck Cable 3/5/10 Lead

ECG Leadwires 3/5/10Lead

ECG Electrodes and ECG/EKG Accessories

Radiatranparent ECG Cable and Leadwires

Temperature Probe and Adapter Cable

IBP Cable and Adapter Cable and Disposable IBP Transducer

NIBP Cuff and NIBP Adapter Hose Tube

EEG Electrodes Leadwires

Spare parts and semi-sinished cables

Non Woven Fabric Disposable SpO2 Sensor Digital Tech For PC-66B PC-3000 UP7000 0





8. Certificates



Non Woven Fabric Disposable SpO2 Sensor Digital Tech For PC-66B PC-3000 UP7000 1





9. FAQ



Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.



Q: How long is your delivery time?
A: Stock order :1-2 days
Normal order 2-4 days
Batch order depends on production & order quantity and negotiation.


Q: What is your terms of payment and way of payment?
A: 100% payment in advance. Payment by TT/Western Union/Paypal/Alibaba/Ali pay/Wechat /L/C(some countries )are acceptable.


Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, make payment,Contact the courier to deliver goods .



Q: What is way of shippment?
A: 1. We ship goods by DHL/Fedex/UPS/EMS/TNT/Shunfeng Express
    2. We can give goods to our customers' courier agent and freight from factory to shenzhen agent is free.



Q:Can your provide customize or OEM service?

A:1.We can add customer's logo on the product or package if samples or design is provided.

2.We can provide design service or manufacture if sample or design is provided.



Q: Can we become your distributor in local?

A: Yes ,We are looking for distributors in every country or region .If you are interested in distribution ,you can email us freely.
