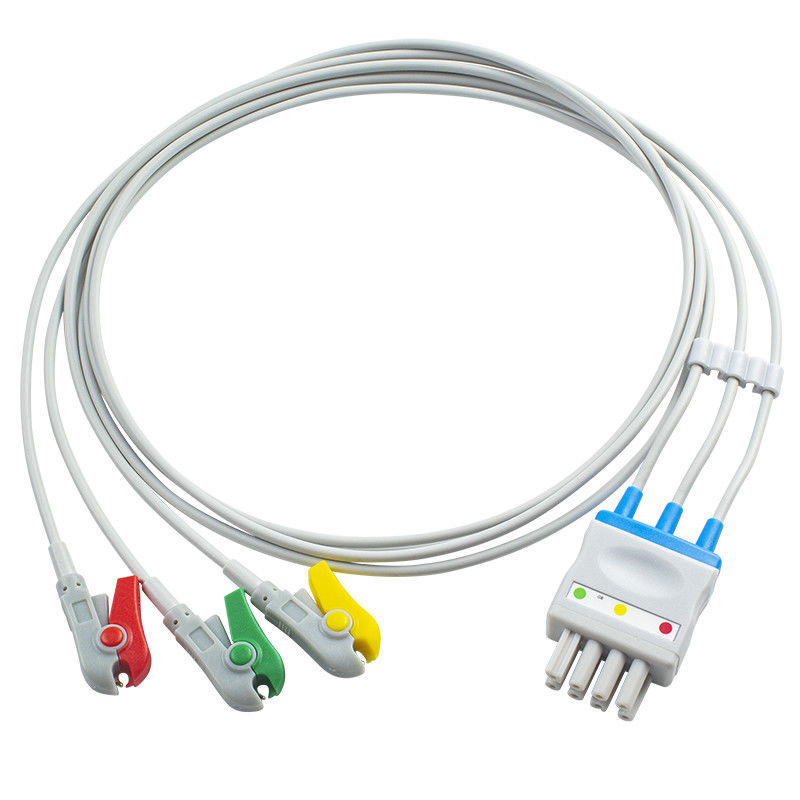

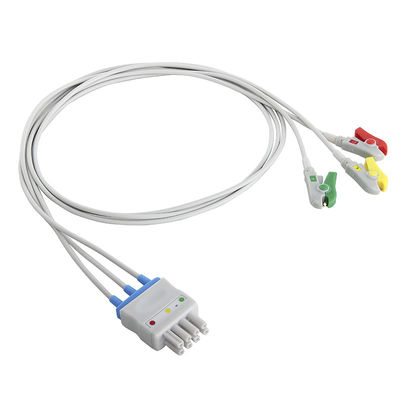

Nihon Kohden ECG Cable BR-906P BR-903PA K911A Set 3 Lead Grabber Clip To Dual 4 Pin Connector

Nihon Kohden ECG Cable BR-906P BR-903PA K911A Set 3 Lead Grabber Clip To Dual 4 Pin Connector

Product Details:

Place of Origin: China
Certification: CE&ISO13485
Model Number: BCF6-13IG

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs per bag
Price: depends on quantity & negotiation
Packaging Details: 1pcs per PE bag
Payment Terms: Western Union, L/C, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Material: TPU Color: Grey
Connector: NK Style Standard: IEC Or AHA
Package: 5 Piece/set,put In Bag Patient End: V2-V6 Pinch/Grabber
Lead Cable Material: TPU Jacket Patient Size: Adult/Pediatric
High Light:

BR-906P nihon kohden ecg cable


BR-903PA nihon kohden ecg cable


3 lead ecg leadwire

Product Description

1.ECG cable and Leadwires core and core, core and shielding, apply AC1500V±10% (RMS), 50Hz, 1 minute, leakage current ≤0.25mA.
2.Suitable for ECG cables with anti-defibrillation function. Under the ECG cable DC5000V 360 J±20% energy impact, 3 times (each discharge time is 60s±5s), the resistance change is not more than ± 10%.
3. After disinfecting all the surfaces of the leads, wipe them clean with medical alcohol, and the electrical and mechanical properties of the hardware remain unchanged.
4. Under the specified allowable maximum temperature, that is: the wire is bent or may have been bent: 60°C; the conductor is not bent or may not be bent: 75°C. Appearance, structure, electrical performance, mechanical performance are normal.
5. The short-term contact surface of the ECG cable equipment, including the wire part, is very likely to touch the patient's skin during use. In order to ensure the safety and effectiveness of the human body, the product must completely avoid any harm to living things. Wire parts in contact with human skin shall meet the following requirements:
1) Cytotoxicity, the scoring grade is not greater than grade 1;
2) Delayed hypersensitivity reaction: no sensitization reaction;
3) No skin irritation.



1. Product Name :

Nihon Kohden ECG leadwires Lead Wire BR-906P BR-903PA K911A Set 3 Lead Grabber Clip to Dual 4 Pin Connector

2. OEM Part Number Cross References:


OEM Part #





Nihon Kohden

BR-906P, BR-906PA, K912A




OEM Part #





3. Compatibility:



Nihon Kohden

BSM-2300 Life Scope I, BSM-2301, BSM-230K, BSM-4100 Life Scope P, BSM-5100 Life Scope A, BSM-6000 series, BSM-6301K, BSM-6312, BSM-6312-NKFL/ZA, BSM-6501K, BSM-6701K, BSM-9510 Life Scope M, BSM-9800 Life Scope S, Life Scope 6700 Series, Life Scope TR, NTX ZM-540/541P, ZM-520-PA, ZM-521-PA, ZM-530-PA, ZM-531-PA, ZM-900 Series Transmitters

Skanray > Larsen and Toubro

Star 55


4. Technical Parameters




NK Style

Patient End Conenctor

Pinch/Grabber /snap






3/ 6 Lead

Lead Cable Material

TPU Jacket

Connector Distal

Twin pin


5.  Certificates
Nihon Kohden ECG Cable BR-906P BR-903PA K911A Set 3 Lead Grabber Clip To Dual 4 Pin Connector 0
6. Company Introduction and products

Shenzhen Best Electronics Co.,Ltd (HongKong Best Medical Group Co.,Ltd) is located in Shenzhen, founded in 2010. We are a professional manufacturer and exporter which specializes in Reusable SpO2 Sensor, Disposable SpO2 Sensor, SpO2 Extension Cable, ECG cable, EKG cable, IBP cable and Disposable pressure transducer, NIBP cuff & tube,Temperature Probe, semi-finished SpO2/ECG cables, SpO2/ECG/EKG/redial and different types monitor's OEM & ODM projects services.

We have advanced production processing equipment and excellent design team to ensure the quality of product. Our products exports to overseas with good reputation.We have both legal production certifications and accuracy test equipment.Most of our products have passed CE Certification and ISO 13485 .


Nihon Kohden ECG Cable BR-906P BR-903PA K911A Set 3 Lead Grabber Clip To Dual 4 Pin Connector 1
Nihon Kohden ECG Cable BR-906P BR-903PA K911A Set 3 Lead Grabber Clip To Dual 4 Pin Connector 2



7. Warranty & after-sale service :



ECG Cable and Leadwires


EKG Cable and Leadwires


ECG Holter Cablel and Leadwires


ECG Trunck Cable 3/5/10 Lead


ECG Leadwires 3/5/10Lead


ECG Electrodes and ECG/EKG Accessories


Radiatranparent ECG Cable and Leadwires


Returen & Exchange :Returning &exchanging are possible within 10 days after the goods are received,on the condition that the quality problems are found and approved by Bestmed.Problemaic product could be repaired & exchanged when they are returned to our factory ,provided that  failures is found within the warranty period .If no faults are found by factory or the items are out of warranty ,the customers should pay freight.
