• Abbott single type Disposable IBP Transducer Blood Pressure Transducer
  • Abbott single type Disposable IBP Transducer Blood Pressure Transducer
  • Abbott single type Disposable IBP Transducer Blood Pressure Transducer

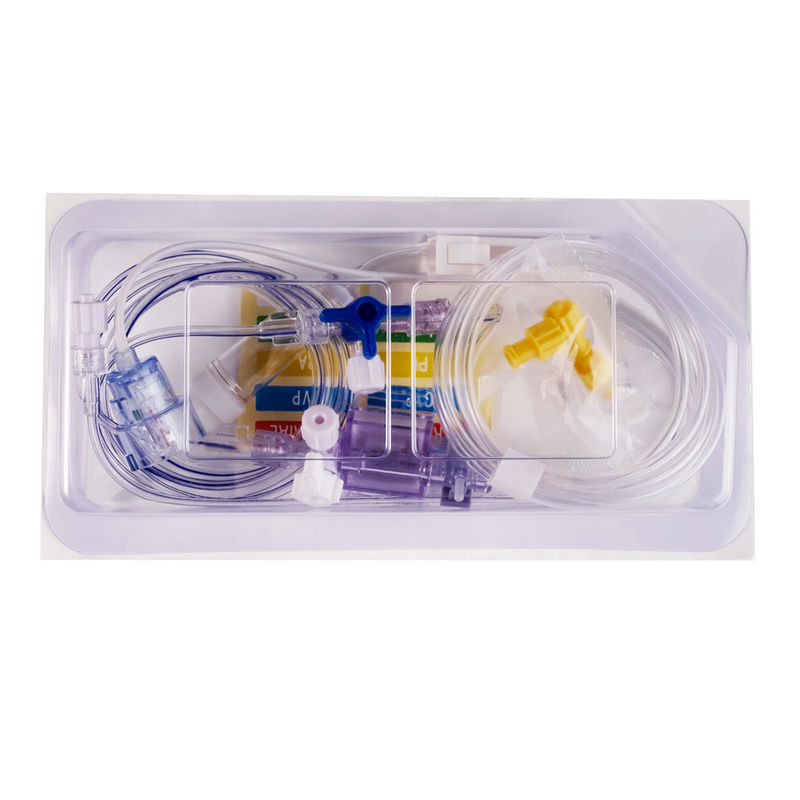

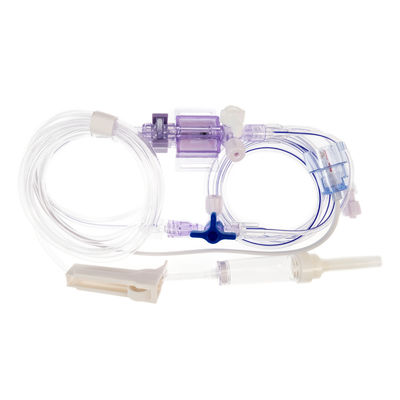

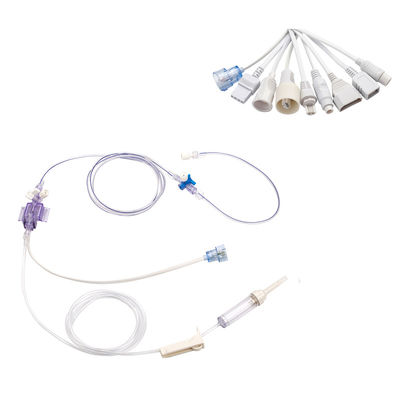

Abbott single type Disposable IBP Transducer Blood Pressure Transducer

Abbott single type Disposable IBP Transducer Blood Pressure Transducer

Product Details:

Place of Origin: China
Brand Name: MEDEX MD
Certification: CE & ISO 13485
Model Number: BIY-MX-01

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: depends on quantity & negotiation
Payment Terms: Western Union, MoneyGram, L/C, T/T
Get Best Price Contact Now

Detail Information

Properties: Medical Materials & Accessories Connector: Abbott Connector
Patient Size: Adult/Pediatric/Neonate Type: General Medical Supplies

Product Description

Disposable IBP transducers are available in a range of sizes and configurations to suit different patient needs. They can be used to monitor blood pressure in a variety of arteries, including the radial artery, femoral artery, and arterial line.



1. Product Name

Abbott single type Disposable IBP Transducer Blood Pressure Transducer



2. Technical Parameters

Main technical parameters and working environment requirements:

Disposable Pressure Transducer

Barometric pressure

70~106Kpa

Relative humidity

10~90% (non-condensing)

Operating pressure range

-50 ~ + 300 mmHg

Sensitivity

5.0μV/V/mmHg ±3%

Nonlinearity and hysteresis

full-scale reading±1.5%

Input impedance

1200Ω ~3200Ω

Zero pressure offset

-20mmHg~+20mmHg

Thermal offset shift

≤±0.3mmHg/°C

Offset drift

After warm-up for 20 seconds, drift within 2 mmHg within 8 hours

Thermal span shift

≤±0.1%/°C

Frequency response

Standard pressure set (48 "/ 12") is 40 Hz; Separate sensor > 200 Hz

Defibrillator withstand

Defibrillation depends on the final connection of the equipment.

Leakage current

Leakage current is dependent on the final connection of the equipment

Overpressure load

-400~+4000mmHg

Shock resistance

Withstand falling from one meter for three times



Light sensitivity

When exposed to a 3400°K tungsten light, candle light at 3000 feet, it's less than 1 mmHg under rated voltage.

Storage and transport environment requirements

- 20 ° C~ + 60 ° C, < 90%(non-condensing), no corrosive gas and indoor ventilation, and to avoid high temperature and cold.

Contact with the human body

≤168h

Intra-system velocity

Flow

2-5mL/h

Intra-system refers to the velocity under 6.00 VDC and 25°C, unless there are additional instructions.



3. Other Models :

REF

Sensor Desription

BIY-MX-01

Single Type MEDEX MD Connector

BIY-MX-02

Dual Type MEDEX MD Connector

BIY-MX-03

Ternary Type MEDEX MD Connector
